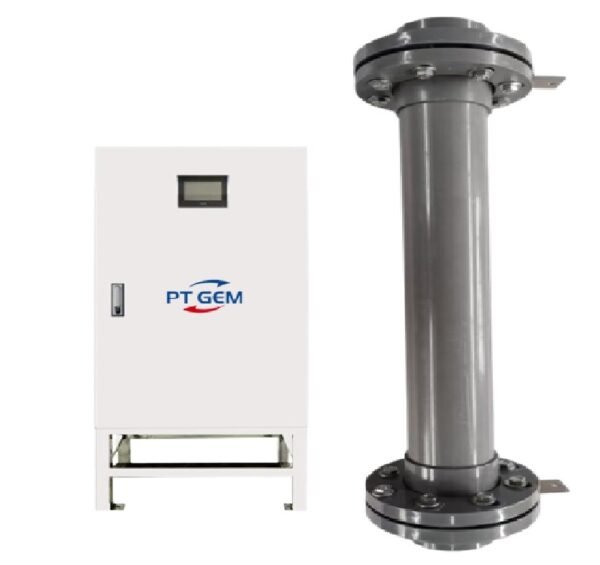

PTGEM Commercial Pool Salt Chlorinator
The PTGEM Commercial Swimming Pool Salt Chlorinator System is an advanced, fully automated solution designed for efficient pool water management. The chlorine production is ranging from 100g/hr to 1000g/hr. Featuring a PLC controller with a user-friendly 7-inch LCD touch screen, this system integrates multiple smart components, including:
-
Automatic acid/alkali dosing pump
-
Automatic salt dosing pump
-
High-precision probes (conductivity, pH, ORP)
-
Water temperature sensor
-
Flow switch
-
Ground electrode
-
Swimming pool cover control
- Automatic constant temperature control of water temperature.
With these integrated features, the system enables seamless automation of filtration pumps and underwater pool lighting. Additionally, it offers adjustable chlorine production (0-100%), ensuring optimal disinfection levels for crystal-clear water while prioritizing user safety and health.
Ideal for commercial pools, this system delivers precision control, energy efficiency, and hassle-free maintenance, guaranteeing superior water quality at all times.
Ptgem’s commercial pool salt chlorinator generator delivers robust, high-capacity chlorination for large commercial swimming pools, water parks, and public aquatic facilities. Built for continuous operation, this commercial salt chlorinator integrates with existing pool circulation systems to maintain consistent, safe water sanitation with reduced manual chemical handling.
- PTGEM Commercial Salt Chlorinator Installation Chart
- PTGEM Commercial Salt Chlorinator Technical Information
| MODEL | PTA-100 | PTA-200 | PTA-250 | PTA-300 | PTA-500 | PTA-750 | PTA-1000 |
|---|---|---|---|---|---|---|---|
| Supply Voltage | 220V~240V / 50~60Hz | 220V~240V / 50~60Hz | 220V~240V / 50~60Hz | 220V~240V / 50~60Hz | 220V~240V / 50~60Hz | 220V~240V / 50~60Hz | 220V~240V / 50~60Hz |
| Chlorine Production | 100 g/hour | 200 g/hour | 250 g/hour | 300 g/hour | 500 g/hour | 750 g/hour | 1000 g/hour |
| Max. Power | 600W | 1050W | 1300W | 1550W | 2600W | 3900W | 5200W |
| Input Current | 36A | 36A | 45A | 55A | 45A*2 | 45A*3 | 45A*4 |
| Input Voltage | 22Vdc | 28Vdc | 28Vdc | 28Vdc | 28Vdc | 28Vdc | 28Vdc |
| Flowrate | 160LPM | 180LPM | 250LPM | 280LPM | 330LPM | 415LPM | 585LPM |
| Salinity | ＞3.5gr/l | ＞3.5gr/l | ＞3.5gr/l | ＞3.5gr/l | ＞3.5gr/l | ＞3.5gr/l | ＞3.5gr/l |
| Cell Housing | PVC | PVC | PVC | PVC | PVC | PVC | PVC |
| PVC Tube Diam | De 110 | De 110 | De 110 | De 110 | De 110 | De 110 | De 110 |
| Cable Section (Copper core cable) | 10mm | 10mm | 16mm | 16mm | 16mm | 16mm | 16mm |
| Water Temp | ＞15℃ | ＞15℃ | ＞15℃ | ＞15℃ | ＞15℃ | ＞15℃ | ＞15℃ |
| Electrode Life | 10,000hr | 10,000hr | 10,000hr | 10,000hr | 10,000hr | 10,000hr | 10,000hr |
| Minimum Flow | 40CBM/hr | 60CBM/hr | 60CBM/hr | 60CBM/hr | 60CBM/hr | 60CBM/hr | 60CBM/hr |
| Self-Cleaning | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
If you would like to learn more about our products, please contact us.
